#. Περιγραφή
Έξυπνα ηλεκτρονικά για το σκάφος σας
Αξιόπιστα προϊόντα διατηρώντας το περιβάλλον ασφαλές.
Η Technoscopic Ltd εδρεύει στη βορειοδυτική Αγγλία.
Εμπορευόμαστε τα δικά μας σχεδιασμένα ηλεκτρονικά προϊόντα για μικρά σκάφη και γιοτ.
Με πάνω από δεκαπέντε χρόνια εμπειρίας, στην ανάπτυξη και ενσωμάτωση ηλεκτρονικών συστημάτων, προσφέρουμε ποιοτικές λύσεις για τις ανάγκες σας.

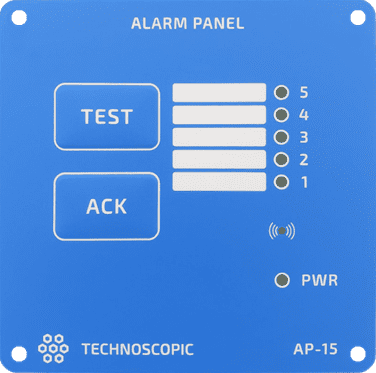

Technoscopic Universal Alarm Panel
Universal Alarm Panel – Ref. No. AP-15-A1
LED indicators for 5 different alarms
LED for operation status
Audible Alarm with 90dB Buzzer
Operating voltage 9VDC – 32VDC
Dimensions 100mm x 100mm x 35mm
2 Year Warranty
In Independent Operation the alarms can be originating from several compatible sources, such as Bilge Pump operation, Temperature Alarm, Oil Pressure Alarm, Door Opened, Lights, etc. When an alarm input is triggered, the respective LED indicator will be flashing, and an audible alarm will be raised for 60 seconds. If the user presses the ACK button the flashing LED will be constantly lit, and the buzzer will be hushed if sounding. The LED will be turned off if the alarm seizes to exist.
In Tank Operation the alarms are originating exclusively from a water tank. There are two distinct alternatives: Tank Mode Filling and Tank Mode Emptying. These alternatives can be programmed by a micro-switch on the device. In any alternative the indicator LEDs are On with presence of water and Off in absence of water.
Technoscopic PNP Output Expansion Board
PNP Output Expansion Board – Ref. No. TROEB-32501-A1
PNP Output Board for AP-15-A1 Marine Alarm Panel.
